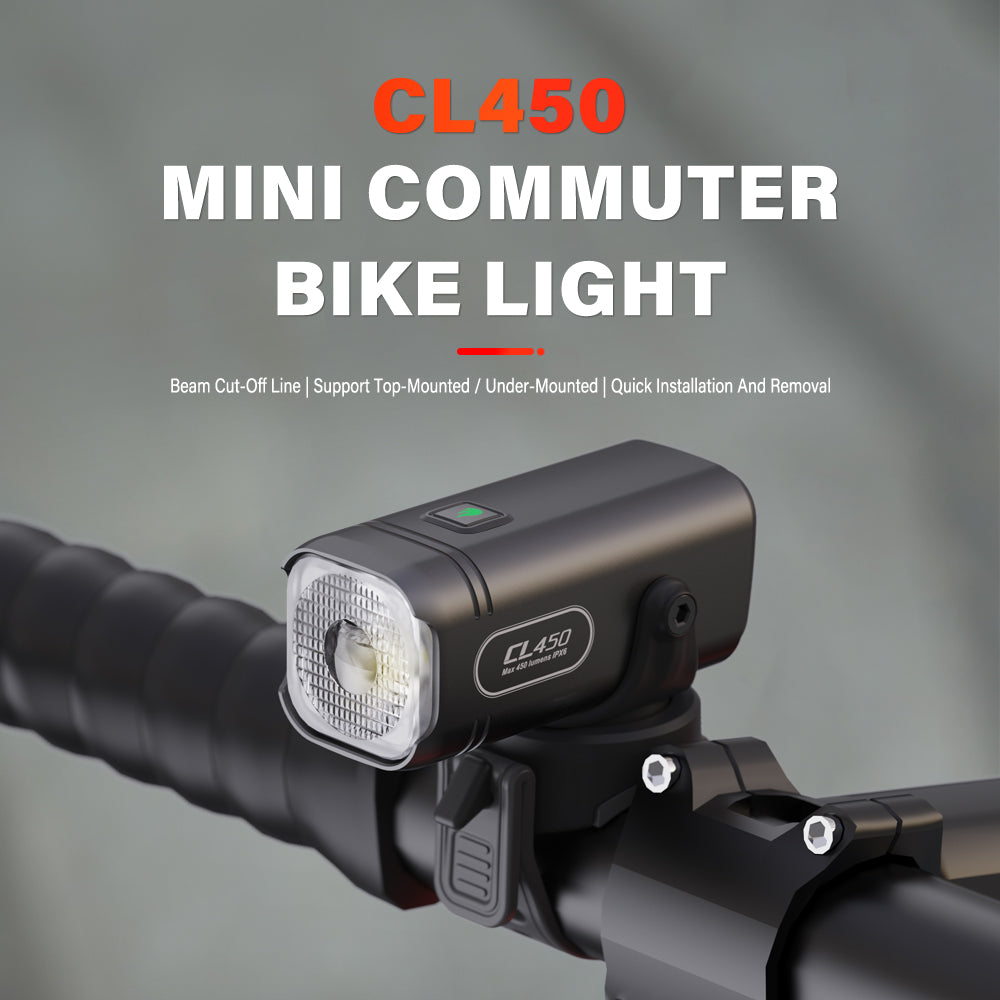

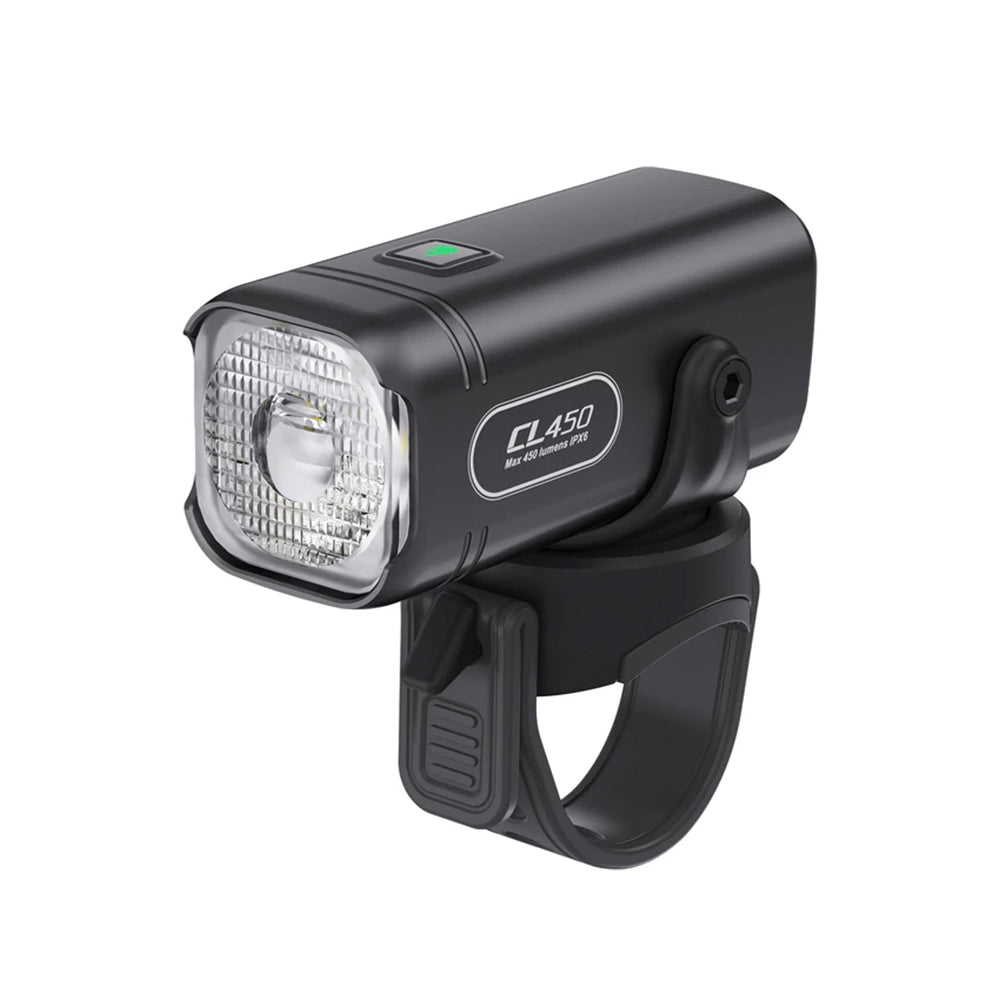

The CL450 is a lightweight smart bike headlight delivering 450 lumens max brightness with USB-C charging. Featuring a 900mAh Li-ion battery, intelligent power management, auto on/off with vibration sensing, and IPX6 waterproof rating, its compact design enhances urban/commuter cycling.
Key Features
-
900mAh rechargeable Li-ion battery
-
Compact size: 69.5mm(L) × 31mm(W) × 31mm(H)
-
Ultralight: 95g (including battery)
-
450-lumen output with auto start/stop & temperature control
-
Anti-glare cut-off beam (EU StVZO compliant)
-
USB-C charging (universal compatibility)
-

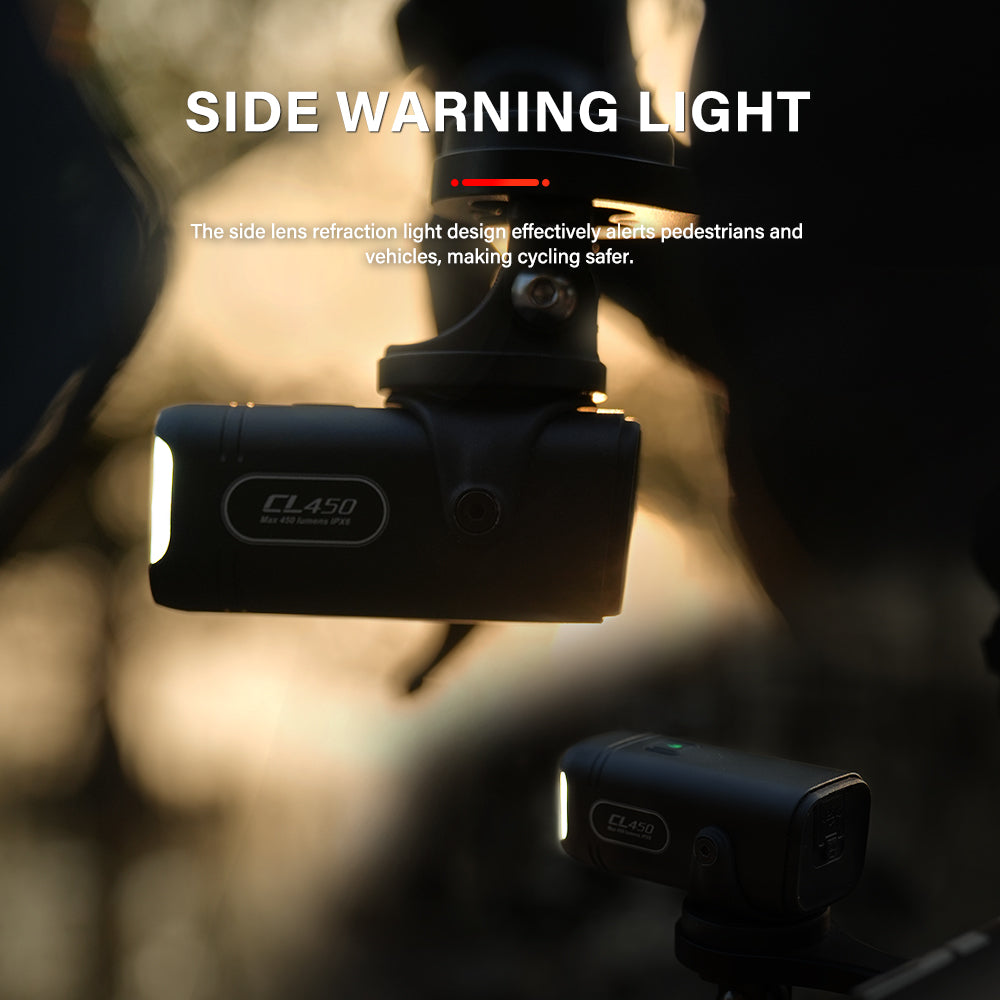

Side safety warning light + battery level indicator
-
One-button operation (power/mode cycling)
-
Battery protection: Prevents overcharge/over-discharge
-
Aircraft-grade aluminum with hard-anodized abrasion-resistant surface
Technical Parameters (ANSI/NEMA FL1 Standard)
| Mode | Brightness | Runtime |
|---|---|---|
| High | 450 lm | 1.5h* |
| Medium | 200 lm | 3h |
| Low | 100 lm | 6h |
| Night warning | 200 lm | 6h |
| Day warning | 400 lm | 7h |
Durability:
-
Drop-resistant: 1.2m
-
Waterproof: IPX6 (heavy rain proof)
*Note: Lab tested with 900mAh battery. Actual performance may vary by usage/environment.*
User Manual
Basic Operation
-
Power on/off: Press and hold button for 0.5s
-
Mode cycling: Single click switches between Low → Medium → High
-
Warning modes: Double-click to enter Night warning (pulsing) ↔ Day warning
Smart Mode vs Manual Mode
-
Switch modes: Hold button for 3s when off (Blue LED=Smart, Green=Manual)
-
Smart auto-off: Turns off after 120s inactivity, reactivates with vibration
Safety Features
-
Overheat protection: Auto reduces brightness at 65°C (High→Medium)
-

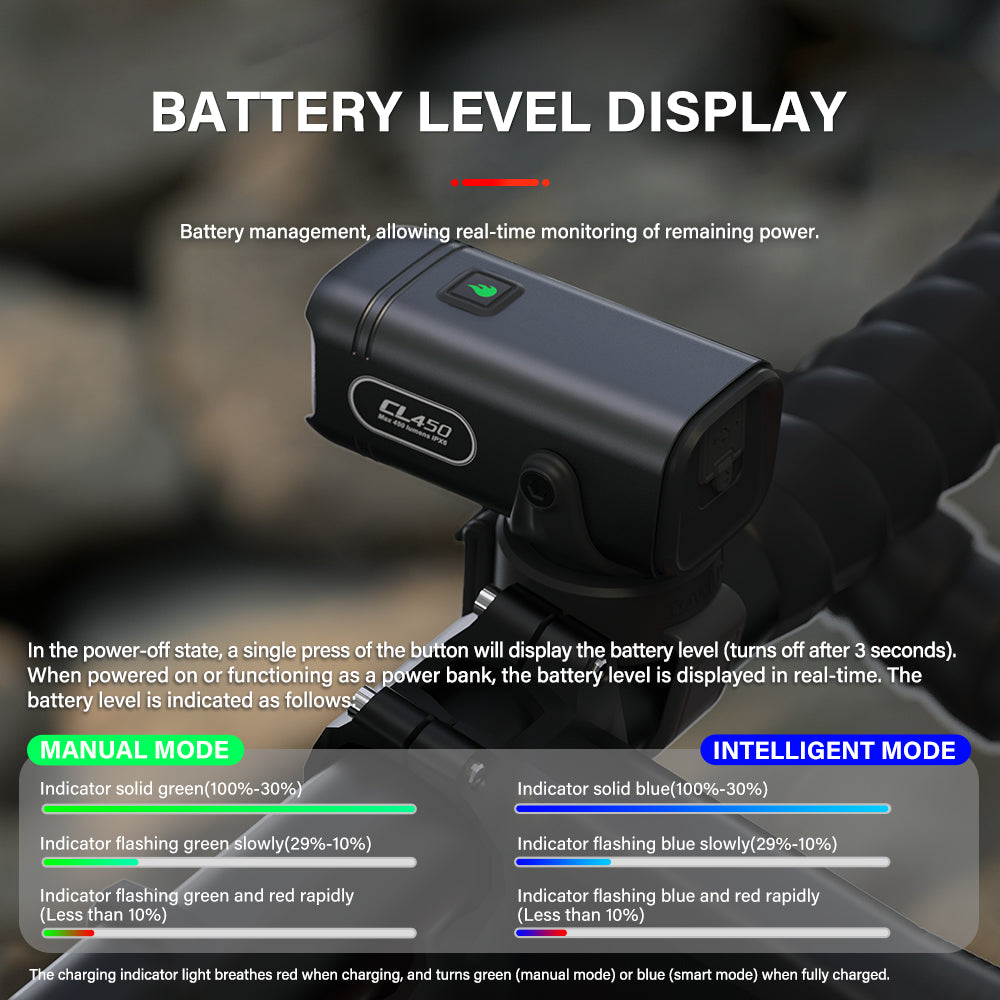

Battery indicator:
-
Smart Mode: Solid blue (30-100%), Slow blink (10-29%), Fast blue/red blink (<10%)
-
Manual Mode: Solid green (30-100%), Slow blink (10-29%), Fast green/red blink (<10%)
-
-
Low battery alert: Blinks 4x when <10%, auto shutdown at 2.8V
Charging
-
Charging time: ~2 hours (1A max current)
-
Status lights:
-
Charging: Pulsing red
-
Fully charged: Solid blue (Smart) / green (Manual)
-
-
Safe charging: Allows use in Low/Warning modes during charge
⚠️ Warning: Do not stare directly at light source to avoid eye damage.
